Home > case > Grinding production line process > Mineral Grinding Case > Calcite powder project in Belgium

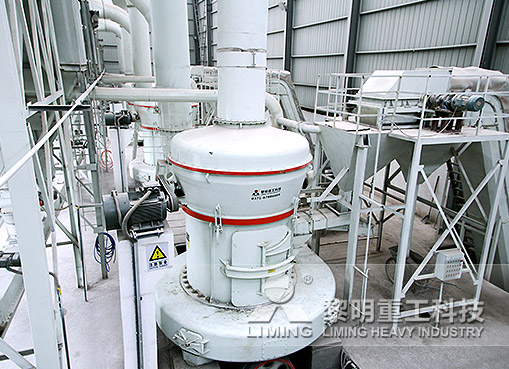

Calcite powder project in Belgium

The whole production line includes PE jaw crusher, electromagnetic vibrating feeder, MTW European version mill, elevator, electric control cabinet, packaging machine, pulse dust collector, etc. It has the characteristics of high automation, high production efficiency, energy saving and environmental protection. Among them, the main grinding equipment is MTW138 Euro Mill, with novel design, reasonable structure, long service life, low energy consumption and high cost performance, which is the ideal choice for non-metallic ore powder making.

Processing material: Calcite
Production capacity: 8-10T/H
Fineness of finished product: 800 mesh = D90

Calcite powder project in Belgium

Calcite powder project in Belgium

Site situation:
After being crushed to the required particle size by the PE250 x 400 jaw crusher, the bulk material is sent to the storage hopper by the elevator, and then the material is continuously fed by the belt conveyor into the main grinding chamber of the two MTW138 European version mills for grinding in an even and quantitative manner. Under the action of the impeller of the separator, the materials that do not meet the fineness requirements fall into the grinding chamber for regrinding, while the qualified materials enter the cyclone powder collector through the air inclined chute for separation and collection, and are discharged through the discharge device as the finished powder.

Customer comments:
In the detailed design of the production line, Liming's engineers have shown strong creativity. The whole system has added the silo automatic alarm system, silo automatic detection system and intelligent design of the elevator, and all the design, installation and commissioning are one-stop, we are very satisfied.
