Home > case > Crushing line > Non-metallic ore crushing > Tibet Rikaze Shale Crushing Production Line

Tibet Rikaze Shale Crushing Production Line

The customer is a road and bridge group company in Shandong, the winning lot is Lhasa - Shigatse highway project section 4 and 5 in the Tibetan plateau zone, the demand is high-grade sand and gravel material, the production time is May 2019. Our equipment has provided high-grade sand and gravel materials for the Lalin and Changdu sections of Sichuan-Tibet Railway, and has rich experience in high-altitude operation.

Processing material: shale

Production capacity: 300T/H

Feeding size: 750mm

Discharge size: 0-5mm, 5-10mm, 10-16.5mm, 16.5-31.5mm

Tibet Rikaze Shale Crushing Production Line

Tibet Rikaze Shale Crushing Production Line

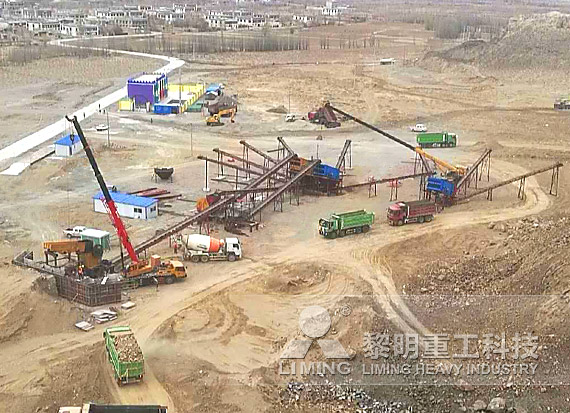

Site condition:

After blasting 750mm shale is evenly fed to PEW860 European jaw crusher by F5X1260 feeder, crushed into 190mm material into the second break HPT300C2 multi-cylinder hydraulic cone crusher, and then into the S5X2460-4 circular vibrating screen screening out the finished product, large material back into the original shaping machine after shaping and then into the other two S5X2460-3 circular vibrating screen for screening The final finished material is 0-5mm, 5-10mm, 10-16.5mm, 16.5-31.5mm.

Customer evaluation:

We visited several projects in Tibet and were satisfied with the quality of the product. We have a tight schedule, so the goods must be very timely, and Liming's equipment can fully meet our requirements. The parts supply and after-sales service are also very good.
